ISO 40ft sea shipping containers high quality 40' x 8' x 9'6" iso shipping container

ISO 40ft sea shipping containers high quality 40' x 8' x 9'6" iso shipping container

  • ISO 40ft sea shipping containers high quality 40' x 8' x 9'6" iso shipping container
  • ISO 40ft sea shipping containers high quality 40' x 8' x 9'6" iso shipping container
ISO 40ft sea shipping containers high quality 40' x 8' x 9'6" iso shipping container
Product Details:
Place of Origin: China
Brand Name: QUALITY
Certification: ISO 9001:2008,ISO 18001,CE
Model Number: 40ft
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Protective Bulk Packing
Delivery Time: 15 Days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 1500 Units/Month
Contact Now
Detailed Product Description
Type: Freight From China Length (feet): 40',12.19M
External Dimensions(l X W X H)(mm): 12192*2438*2896,12.192 X 2.438 X 2.896M Internal Dimensions(l X W X H)(mm): 5898*2352*2393mm 12032*2352*2393mm,12.032 X 2.288 X 2.453M
Capacity: 33.2CBM 67.7CBM Material: Corten Steel,SPA-H (Corten-A),Steel Structure
Size: 20gp 40gp 40hq

Technical Specification For 40' x 8' x 9'6" ISO Type Dry Cargo Steel Container
ISO 40ft sea shipping containers high quality 40' x 8' x 9'6" iso shipping container 0

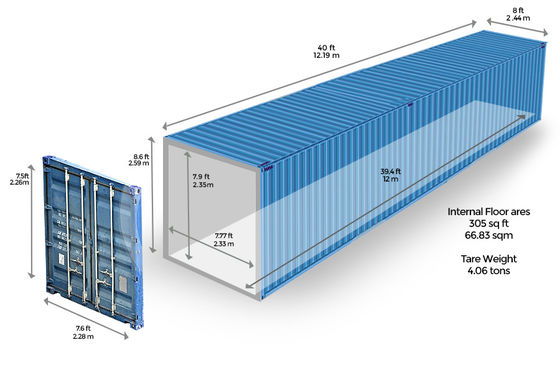

5 . Dimensions and Ratings
5.1 Dimension
External Dimensions
Internal Dimensions
Length
12,192 ( 0, -10 ) mm
12,032 ( 0, -10 ) mm
Width
2,438 ( 0, -5 ) mm
2,352 ( 0, -5 ) mm
Height
2,896 ( 0, -5 ) mm
2,698 ( 0, -5 ) mm
No part of the container will protrude beyond the external dimensions
mentioned above.
Maximum allowable difference between two diagonals on any one of the
following surface are as follow:
Roof, Bottom and Side Diagonals.......... 19 mm.
Front and Rear Diagonals.......... 10 mm.
5.2 Door Opening
Width ..................2,340 ( 0,-5 )mm
Height ...................2,585 ( 0,-5 )mm
5.3 Gooseneck Tunnel
Length ..................3,315mm
Width ..................1,029 ( +3,0 )mm
Height ...................120 ( 0,-3 )mm
5.4 Inside Cubic Capacity
76.4 cu.m 2,700 cu.ft
5.5 Rating
Maximum Gross Weight ..............32,500 kg 71,650 lbs
Maximum Payload .............28,670 kg 63,210 lbs
Tare Weight (±2%) ...............3,830 kg 8,440 lbs

ISO 40ft sea shipping containers high quality 40' x 8' x 9'6" iso shipping container 1
