To provide prefabricated housing solution services for customers,to innovate for customers' interests,to create value for customers.
Committed to create high quality items for shareholders,customers,employees and society.
 |
| Place of Origin: | Weifang |
| Brand Name: | QUALITY |
| Certification: | CE,ISO |
| Model Number: | HEYA-B |
| Minimum Order Quantity: | 4 UNITS Container house |
|---|---|
| Price: | Negotiation |
| Packaging Details: | SOC or In bulk |
| Delivery Time: | 7 days |
| Payment Terms: | T/T OR L/C |
| Supply Ability: | 100 Units container house |
| Structure: | Galvanized Steel Frame | Size: | 6055mmX2435mmX2896mm |
|---|---|---|---|
| Application: | Camp,etc. | Door: | Steel Door |
| Usage: | Living | Roof: | Sandwich Tile |
| Type: | Prefab | Wall: | EPS Sandwich Panel |
| Color: | Customized | Layout: | Customized |

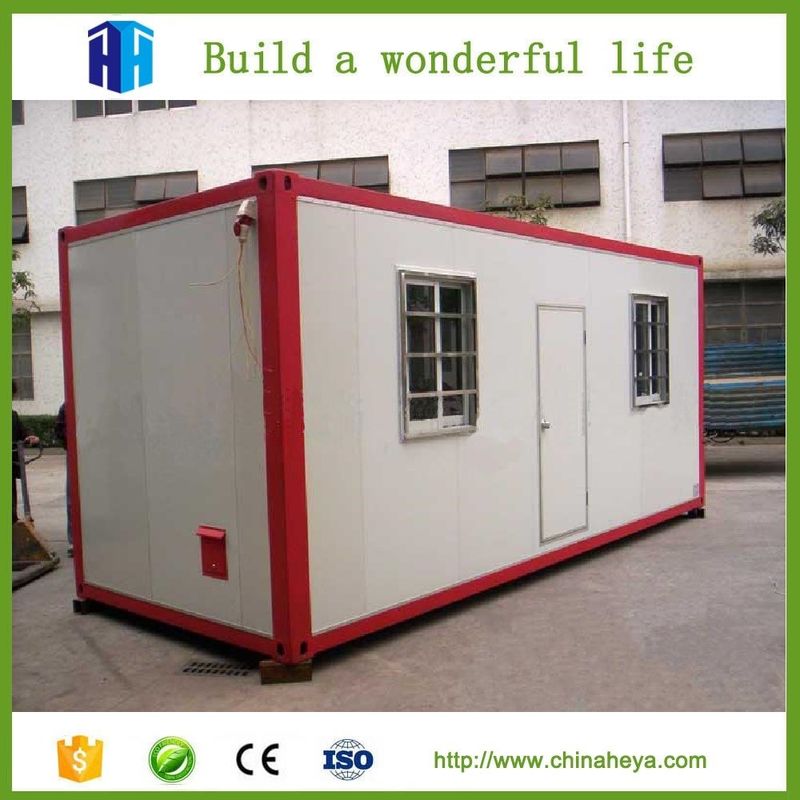

2017 wholesale 20ft container building and working container rooms design China company
Container flat roof house performance
1.Light steel frame,firmly and safety,ready components durable,easy to transport and installation
2.Repeated used,up to 6 times ressamble,without wasting and building materials rubbish
3.Environment adaptiveness,flatland,hilly ground,desert,village,city constructions projects etc
4.Flexible design,doors,windows,partitions can be located at any position as you like
5.Anti-typhoon,anti-eathquake,corrosion resistance,acid resistance,long life time(more than 15 years)
6.Noise and heat insulation,economic fashion and beautiful,can be stacked for three floors
7.Multi applications,civilian resident living house,hotel,restaurants,school,bussiness
shops,warehouse,toilets,outdoor camping house,project construction office,meeting
room,dormitory,emergency temporary center etc.
PRODUCT DETAIL & TECHNICAL STANDARD:
| Type | External | Internal | Weight (kg) | |||||
| Length | Width | Height (package) | Height (assembled) | Length | Width | Height | ||
| 20’ | 6055 | 2435 | 648/864 | 2591/2790 | 5860 | 2240 | 2500 | from 1850 |
Floor:
| Steel frame | - made from cold rolled, welded steel profiles, 4 mm thick |
| - 4 corner casts, welded | |
|
- 2 fork lift pockets (except 30’) - distance 1200mm (internal clearance of fork lift pockets: 240×80 mm) |
|
| - steel cross members, thickness=2mm | |
| Insulation | - 100 mm thick Rock Wool |
| Subfloor | - 0.5mm thick, galvanized steel sheet |
| Floor | - 18mm plywood board |
|
- 1.8mm PVC floor - flammability class B1 - hardly combustible - smoke density class Q1 - low smoke emission - wear resistance factor: T level |
Roof:
| Steel frame | - made from cold rolled, welded steel profiles, 3mm thick |
| - 4 corner casts, welded | |
| - steel cross members, thickness=2mm | |
| Roof cover |
- 0.5mm thick, galvanized steel sheet - 360 degree seaming at joint of roof panels |
| Insulation | - 100 mm thick Rock Wool |
| Ceiling |
- 10 mm chipboard (V 20), laminated on both sides, white - the chipboard complies with the emission value E1 |
| CEE connector | - sunken in frame on short end side |
Insulation for steel container house:
| Rockwool | - density:120kg/m3 |
|
- flammability class A- non combustible - smoke density class Q1 - low smoke emission |
|
| - certificated: CE & GL | |
| EPS | - density:10kg/m3 |
|
- flammability class B1- non combustible - smoke density class Q1 - low smoke emission |
|
| - certificated: CE & GL |
PACKING & SHIPMENT:
1, One 40’ft HQ container can load 5 units 20ft standard flat-pack container.
2, 4 sets standard flat pack containers can be shipped to your pointed port as the shipping container.
3, If you only need structure, we can loaded into shipping container or shipped as directly.
| Packaging | mixed packaging. roof frame and bottom frame will be packed together with bolts; all the wall panels packed together with wooden pallet in the bottom, corrugated board on the surface, and XPS board in the interspace. And it will be shipped in 40’ container |
| Loading &shipment | mixed packaging. roof frame and bottom frame will be packed together with bolts; all the wall panels packed together with wooden pallet in the bottom, corrugated board on the surface, and XPS board in the interspace. And it will be shipped in 40’ container |
| Unloading |
40 feet ocean freight container: A: take out the small packages; B: use folk lift to take out the wall panel packages; C: grapple the corner on bottom side of the container house and drage the package out, remain about 50cm in the shipping container D: use folk lift to lift the container package in the middle and move it out of the shipping container; E: put the package on ground sidewise, use wooden pad if it’s flatwise |
Our company is committed to become your trusted partner, you focus on your area of expertise, let us help you deal with the temporary office and warehouse of a comprehensive solution. Depending on your requirements, our engineers will provide you with the planning and design layout, professional installation and assembly team, will be completed in time for you to install. Rely on global supply chain procurement, to provide you with office furniture, air conditioning and other rich ancillary products.
We offer prefab house,container home,modular house,prefab camp house,labor house, and so on.From design,to product,to sale,to install,offer complete train services.
a.Your inquiry of our prefab houses will be replied in 24 hours.
b.Good quality product,quick delivery time,competitive price,strong packing.
c.Product can be customized according to your inquiry.
d.We have enthusiastic and energetic sales force who can speak English fluently.
1.Q: How to buy container house?
A: You can provide us your drawing, and we will produce as your drawings.
2.Q: How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 50% deposit before producing, 50% balance before loading by TT.
3.Q: What is the delivery time?
A: It depends on order quantities. Generally speaking, the delivery time will be within 15 to 30 days.
4.Q: How to ship container house?
A: Loading by sea shipping container.
5.Q: How to install after the container house arriving destination?
A: We will provide detailed illustration photos and videos to you. If it is necessary, we will send technicians to help you. However, the visa fee, air tickets, accommodation, wages will be borne by buyers.
6. Q: What are the advantages of your panel?
A: Our panel's outstanding advantages are light weight, heat insulation/proof, waterproof, fireproof, sound insulation, fast construction and so on.
7. Q: Is the panel fire rated, if so, what is the rating?
A: Theoretically, it can endure the fire for 4 hours in the heat of 1000°C. But in fact, it is incombustible.
8. Q: Do you have any certificate to help us get government's approval?
A: We can provide our ISO certificate, test reports, SGS certificates as your support documents. Since the building standards are different in various countries, most of our customers buy the panels for test and get approval by themselves.
9. Q: I need samples for customer approval, will this be possible?
A: We can provide samples at your required size, but we will not afford the cost of delivery.
