Wholesale bath container cheap movable van house for sale philippines

Product Details:

Place of Origin:	Weifang
Brand Name:	QUALITY
Certification:	CE,ISO
Model Number:	HEYA-B

Payment & Shipping Terms:

Minimum Order Quantity:	4 UNITS Container house
Price:	Negotiation
Packaging Details:	SOC or In bulk
Delivery Time:	7 days
Payment Terms:	T/T OR L/C
Supply Ability:	100 Units container house

Contact Now

Detailed Product Description

Structure:	Galvanized Steel Frame	Size:	6055mmX2435mmX2896mm
Application:	Camp,etc.	Door:	Steel Door
Usage:	Living	Roof:	Sandwich Tile
Type:	Prefab	Wall:	EPS Sandwich Panel
Color:	Customized	Layout:	Customized

Bath container cheap movable van house for sale philippines

1. container van house for sale philippines

2. bath container

3. cheap movable houses for sale

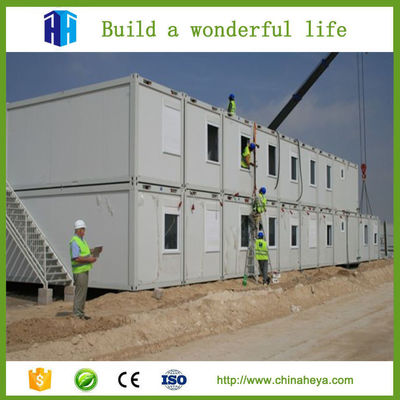

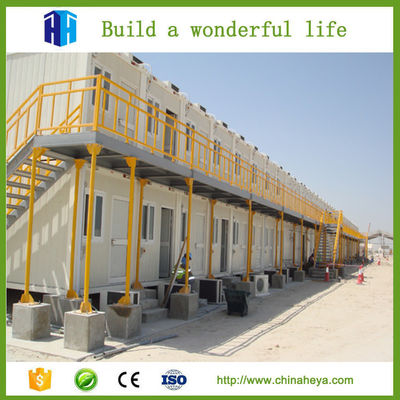

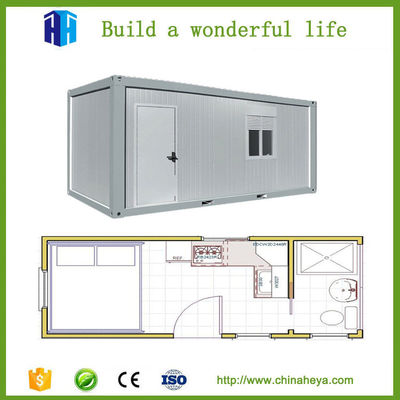

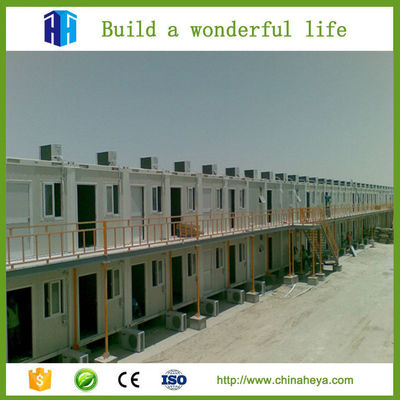

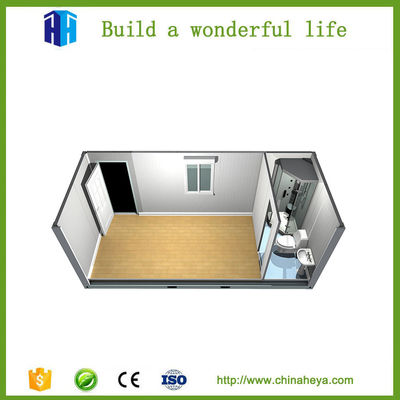

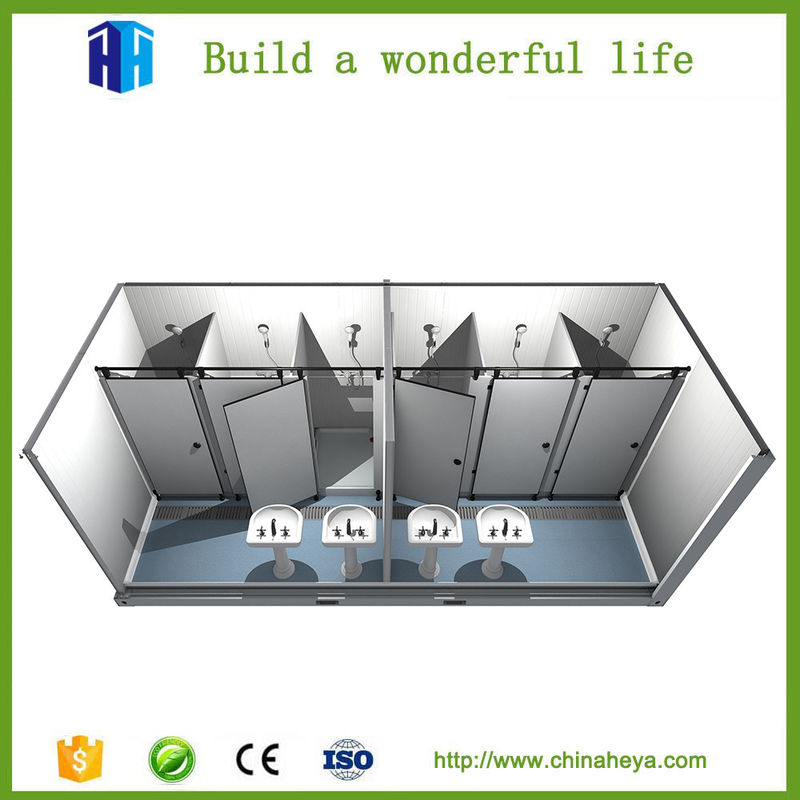

PRODUCT PHOTOS:

Wholesale bath container cheap movable van house for sale philippines 0

Wholesale bath container cheap movable van house for sale philippines 2

Wholesale bath container cheap movable van house for sale philippines 3

Wholesale bath container cheap movable van house for sale philippines 5

PRODUCT DETAIL & TECHNICAL STANDARD:

Type	External				Internal			Weight (kg)
Type	Length	Width	Height (package)	Height (assembled)	Length	Width	Height	Weight (kg)
20’	6055	2435	648/864	2591/2790	5860	2240	2500	from 1850

Floor:

Steel frame	- made from cold rolled, welded steel profiles, 4 mm thick
	- 4 corner casts, welded
	- 2 fork lift pockets (except 30’) - distance 1200mm (internal clearance of fork lift pockets: 240×80 mm)
	- steel cross members, thickness=2mm
Insulation	- 100 mm thick Rock Wool
Subfloor	- 0.5mm thick, galvanized steel sheet
Floor	- 18mm plywood board
Floor	- 1.8mm PVC floor - flammability class B1 - hardly combustible - smoke density class Q1 - low smoke emission - wear resistance factor: T level

Wholesale bath container cheap movable van house for sale philippines 6

Roof:

Steel frame	- made from cold rolled, welded steel profiles, 3mm thick
	- 4 corner casts, welded
	- steel cross members, thickness=2mm
Roof cover	- 0.5mm thick, galvanized steel sheet - 360 degree seaming at joint of roof panels
Insulation	- 100 mm thick Rock Wool
Ceiling	- 10 mm chipboard (V 20), laminated on both sides, white - the chipboard complies with the emission value E1
CEE connector	- sunken in frame on short end side

Wholesale bath container cheap movable van house for sale philippines 7

Insulation for steel container house:

Rockwool	- density:120kg/m3
	- flammability class A- non combustible - smoke density class Q1 - low smoke emission
	- certificated: CE & GL
EPS	- density:10kg/m3
	- flammability class B1- non combustible - smoke density class Q1 - low smoke emission
	- certificated: CE & GL

PACKING & SHIPMENT:

Packaging

mixed packaging. roof frame and bottom frame will be packed together with bolts; all the wall panels packed together with wooden pallet in the bottom, corrugated board on the surface, and XPS board in the interspace. And it will be shipped in 40’ container

Loading &shipment

Unloading

40 feet ocean freight container:

A: take out the small packages;

B: use folk lift to take out the wall panel packages;

C: grapple the corner on bottom side of the container house and drage the package out, remain about 50cm in the shipping container

D: use folk lift to lift the container package in the middle and move it out of the shipping container;

E: put the package on ground sidewise, use wooden pad if it’s flatwise

Wholesale bath container cheap movable van house for sale philippines 10

Wholesale bath container cheap movable van house for sale philippines 11

ABOUT US:

Shandong Heya Company is the best Chinese prefabricated housing solution supplier.

Our products include prefabricated house,container house, mobile homes, villas, integrated steel structure.

We have 6 years experience in the industry, owning professional manufacture and procurement team, and maintaining long-term cooperative relationship with many well-known manufacturers. Wholesale bath container cheap movable van house for sale philippines 12

OUR CLIENTS:

Wholesale bath container cheap movable van house for sale philippines 14
