To provide prefabricated housing solution services for customers,to innovate for customers' interests,to create value for customers.
Committed to create high quality items for shareholders,customers,employees and society.
 |
| Place of Origin: | Weifang |
| Brand Name: | QUALITY |
| Certification: | CE,ISO |
| Model Number: | HEYA-B |
| Minimum Order Quantity: | 4 UNITS Container house |
|---|---|
| Price: | Negotiation |
| Packaging Details: | SOC or In bulk |
| Delivery Time: | 7 days |
| Payment Terms: | T/T OR L/C |
| Supply Ability: | 100 Units container house |
| Structure: | Galvanized Steel Frame | Size: | 6055mmX2435mmX2896mm |
|---|---|---|---|
| Application: | Camp,etc. | Door: | Steel Door |
| Usage: | Living | Roof: | Sandwich Tile |
| Type: | Prefab | Wall: | EPS Sandwich Panel |
| Color: | Customized | Layout: | Customized |
Luxury portable prefab shop building house container shop supplier
1. portable shop building
2. portable container shop
3. luxury portable prefab shop building house

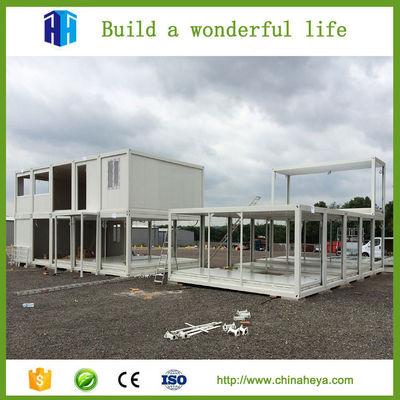

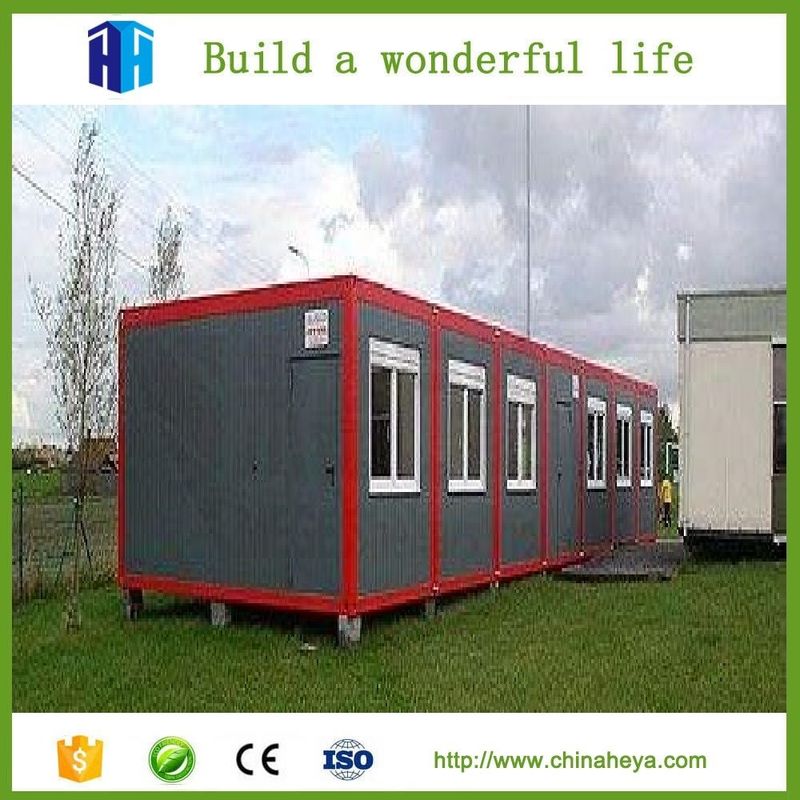

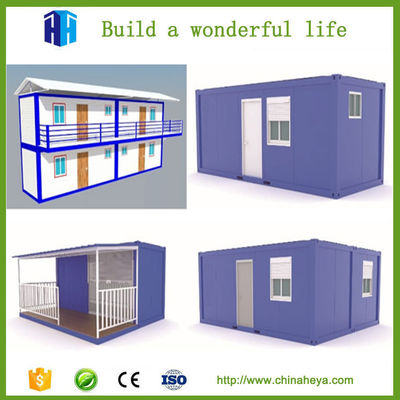

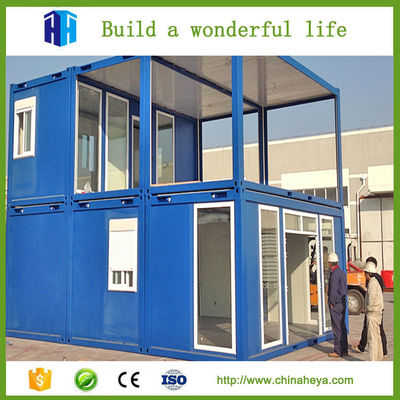

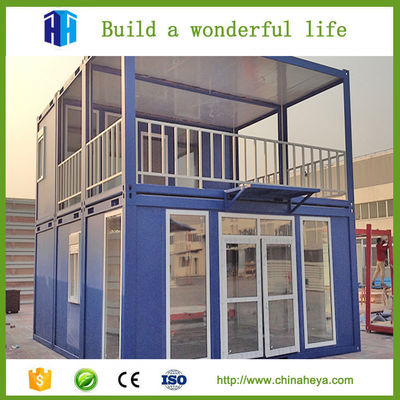

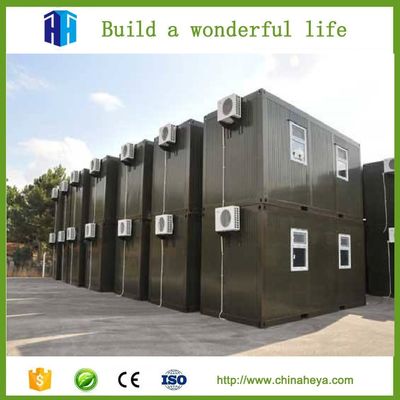

PRODUCT PHOTOS:
PRODUCT DETAIL & TECHNICAL STANDARD:
| Type | External | Internal | Weight (kg) | |||||
| Length | Width | Height (package) | Height (assembled) | Length | Width | Height | ||
| 20’ | 6055 | 2435 | 648/864 | 2591/2790 | 5860 | 2240 | 2500 | from 1850 |
Floor:
| Steel frame | - made from cold rolled, welded steel profiles, 4 mm thick |
| - 4 corner casts, welded | |
|
- 2 fork lift pockets (except 30’) - distance 1200mm (internal clearance of fork lift pockets: 240×80 mm) |
|
| - steel cross members, thickness=2mm | |
| Insulation | - 100 mm thick Rock Wool |
| Subfloor | - 0.5mm thick, galvanized steel sheet |
| Floor | - 18mm plywood board |
|
- 1.8mm PVC floor - flammability class B1 - hardly combustible - smoke density class Q1 - low smoke emission - wear resistance factor: T level |
Roof:
| Steel frame | - made from cold rolled, welded steel profiles, 3mm thick |
| - 4 corner casts, welded | |
| - steel cross members, thickness=2mm | |
| Roof cover |
- 0.5mm thick, galvanized steel sheet - 360 degree seaming at joint of roof panels |
| Insulation | - 100 mm thick Rock Wool |
| Ceiling |
- 10 mm chipboard (V 20), laminated on both sides, white - the chipboard complies with the emission value E1 |
| CEE connector | - sunken in frame on short end side |
Insulation for steel container house:
| Rockwool | - density:120kg/m3 |
|
- flammability class A- non combustible - smoke density class Q1 - low smoke emission |
|
| - certificated: CE & GL | |
| EPS | - density:10kg/m3 |
|
- flammability class B1- non combustible - smoke density class Q1 - low smoke emission |
|
| - certificated: CE & GL |
PACKING & SHIPMENT:
| Packaging | mixed packaging. roof frame and bottom frame will be packed together with bolts; all the wall panels packed together with wooden pallet in the bottom, corrugated board on the surface, and XPS board in the interspace. And it will be shipped in 40’ container |
| Loading &shipment | mixed packaging. roof frame and bottom frame will be packed together with bolts; all the wall panels packed together with wooden pallet in the bottom, corrugated board on the surface, and XPS board in the interspace. And it will be shipped in 40’ container |
| Unloading |
40 feet ocean freight container: A: take out the small packages; B: use folk lift to take out the wall panel packages; C: grapple the corner on bottom side of the container house and drage the package out, remain about 50cm in the shipping container D: use folk lift to lift the container package in the middle and move it out of the shipping container; E: put the package on ground sidewise, use wooden pad if it’s flatwise |
ABOUT US:
Shandong Heya Company is the best Chinese prefabricated housing solution supplier.
Our products include prefabricated house,container house, mobile homes, villas, integrated steel structure.
We have 6 years experience in the industry, owning professional manufacture and procurement team, and maintaining long-term cooperative relationship with many well-known manufacturers.
OUR CLIENTS:
Contact Person: Mr. William
Tel: 008613153691144
Fax: 0086-536-8233282
