2 Bedroom prefabricated steel frame container house plans modular wood homes

Product Details:

Place of Origin:	Weifang
Brand Name:	QUALITY
Certification:	CE,ISO
Model Number:	HEYA-B

Payment & Shipping Terms:

Minimum Order Quantity:	4 UNITS Container house
Price:	Negotiation
Packaging Details:	SOC or In bulk
Delivery Time:	7 days
Payment Terms:	T/T OR L/C
Supply Ability:	100 Units container house

Contact Now

Detailed Product Description

Structure:	Galvanized Steel Frame	Size:	6055mmX2435mmX2896mm
Application:	Camp,etc.	Door:	Steel Door
Usage:	Living	Roof:	Sandwich Tile
Type:	Prefab	Wall:	EPS Sandwich Panel
Color:	Customized	Layout:	Customized

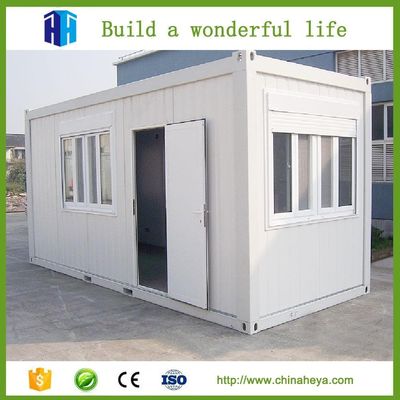

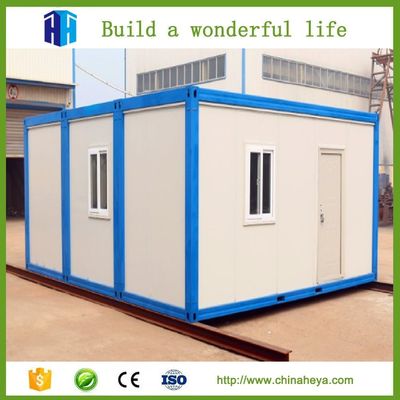

2 Bedroom prefabricated steel frame container house plans modular wood homes

Product Description

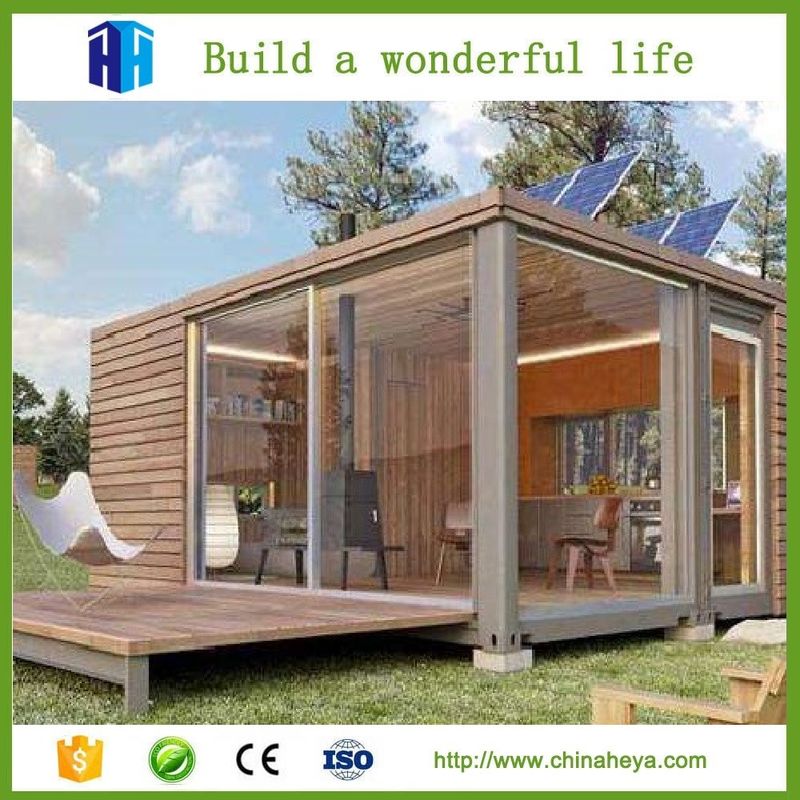

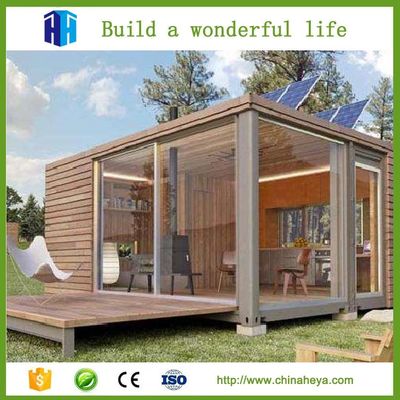

Design appearance 1.jpg Design appearance 2.jpg

Item	Details
Dimension(mm)&Weight(kg)	Recommend:L6055W2435H2896mm/L6055W3000H2896mm(Custom Sizes Available)
Floor	Steel frame:made from cold rolled,welded steel profiles,4 mm thick,4 corner casts,welded steel cross members,thickness=1.8mm
Floor	Floor:18mm Mgo Board,1.8mm PVC floor(blue),flammability class B1-hardly combustible,smoke density class Q1-low smoke emission
Roof	Steel frame:made from cold rolled,welded steel profiles,3mm thick,4 corner casts,welded,steel cross members, thickness=2mm
	Roof cover:0.4mm thick,galvanized steel sheet,360 degree seaming at joint of roof panels
	Insulation:100 mm thick Glass Wool
	Ceiling:corrugated metal sheet,YX12-110-880,0.35mm thickness
	CEE connector:sunken in frame on short end side
Wall Insulation	Glass wool sandwich panel,0.4mm thickness color steel sheet/150mm/50kg/m3 glass wool,white-grey,size 1150mm*2575mm
Doors	Steel door:840mm*2035mm
Windows	Sliding window:Upvc sliding window,white,1110mm *1100mm,with screen,fence,5+9A+5 double glass
Electrical Installation	Technical data:sunken CEE external plug and socket connections,voltage 230/400 V (option:110V),50 Hz,3/5 poles,32 A,circuit diagram for assembly provided inside the consumer box,consumer box,sunken into wall panel

Materical Science:

20 ft standard container installation

.jpg

Company information

Heya Group is one of the largest manufacturers of the prefabricated house,flat pack container house,steel villas, and steel structure warehouse in China. We have been doing well in this field for more than 21 years,and we have exported our products to more than 90 countries as well as our domestic market with ISO9001,CE and SGS approval.

Heya Group

heya12-12-1

Heya Workshop

detail12-13-1

Our Service

1.Design & Engineering about Prefab flat pack container house

Experienced and skilled team of designers including CAD designers and 3D designers has the capacity to deliver outstanding designs for your project.Simple design service is free of charge to all clients to ensure customer satisfaction and compliance with local standards. If you require more complex engineering of structures such as load baring capacities we can also provide this service but need designer fee . We look forward to delivering exceptional designs and advice for your project.

2. Installation supervision and after-sales service

Projects can be assisted by our construction team. We have the capacity to provide civil work advisory service to assist on the construction requirements of the project and full project management if required. With the capacity to utilize skilled personal from around the globe you can be assured your construction crew will efficiently simplify the construction process of any project. If needed, we will dispatch our professional workers to conduct assembling guide or technical support for you on site. We're at your service!

3 Arrange Shipping and good package without wood material

Tiandi container house can be transported and shipped through worldwide. We can arrange the shipping with competitive sea freight to your port.
