To provide prefabricated housing solution services for customers,to innovate for customers' interests,to create value for customers.
Committed to create high quality items for shareholders,customers,employees and society.
 |
| Place of Origin: | Shandong ,China |
| Brand Name: | QUALITY |
| Certification: | CE Certification |
| Model Number: | HeYa-B |
| Minimum Order Quantity: | 4 sets |
|---|---|
| Price: | US $2,500 - 4,500 / Set |
| Packaging Details: | 1, Delivery by 40'HQ shipping container. 2, 4 in 1 flat packing |
| Delivery Time: | Shipped in 10 days after payment |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 1000 Set/Sets per Month |
| Key Words: | Ready Made Container House | Product: | Prefabricated Container Home |
|---|---|---|---|
| Product Name: | Tiny House Kits Container Prefabricated Flat Pack Office For Sale | Color: | White , Blue , Yellow , Gray , Customized |
| Structure: | Steel Frame Structure | Application: | House , Camp , Office , Villa , Hotel , Dorm , Others |
| Size: | 6055x2435x2896mm/6055x2435x2896mm | Certification: | ISO , CE Certification |
Dimension(mm)&Weight(kg) for steel container house
|
Type |
External | Internal | Weight (kg) | |||||
| Length | Width | Height (package) | Height (assembled) | Length | Width | Height | ||
| 20’ | 6055 | 2435 | 648/864 | 2591/2790 | 5860 | 2240 | 2500 | from 1850 |
Floor:
| Steel frame | - made from cold rolled, welded steel profiles, 4 mm thick |
| - 4 corner casts, welded | |
|
- 2 fork lift pockets (except 30’) - distance 1200mm (internal clearance of fork lift pockets: 240×80 mm) |
|
| - steel cross members, thickness=2mm | |
| Insulation | - 100 mm thick Rock Wool |
| Subfloor | - 0.5mm thick, galvanized steel sheet |
| Floor | - 18mm plywood board |
|
- 1.8mm PVC floor - flammability class B1 - hardly combustible - smoke density class Q1 - low smoke emission - wear resistance factor: T level |
Roof:
| Steel frame | - made from cold rolled, welded steel profiles, 3mm thick |
| - 4 corner casts, welded | |
| - steel cross members, thickness=2mm | |
| Roof cover |
- 0.5mm thick, galvanized steel sheet - 360 degree seaming at joint of roof panels |
| Insulation | - 100 mm thick Rock Wool |
| Ceiling |
- 10 mm chipboard (V 20), laminated on both sides, white - the chipboard complies with the emission value E1 |
| CEE connector | - sunken in frame on short end side |
Insulation for steel container house
| Rockwool | - density:120kg/m3 |
|
- flammability class A- non combustible - smoke density class Q1 - low smoke emission |
|
| - certificated: CE & GL | |
| EPS | - density:10kg/m3 |
|
- flammability class B1- non combustible - smoke density class Q1 - low smoke emission |
|
| - certificated: CE & GL |

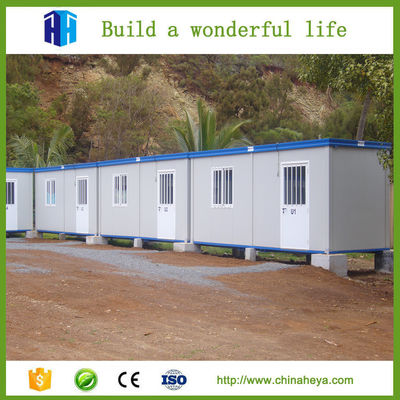

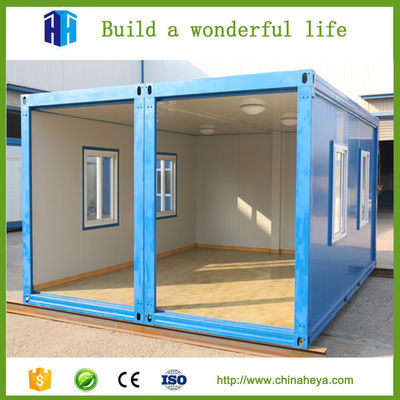

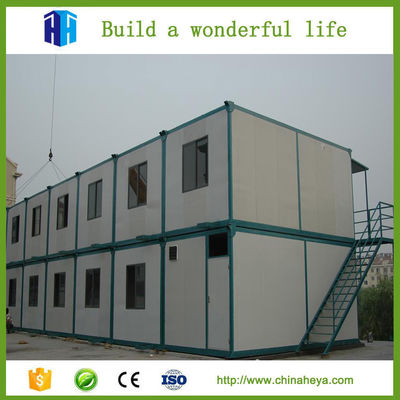

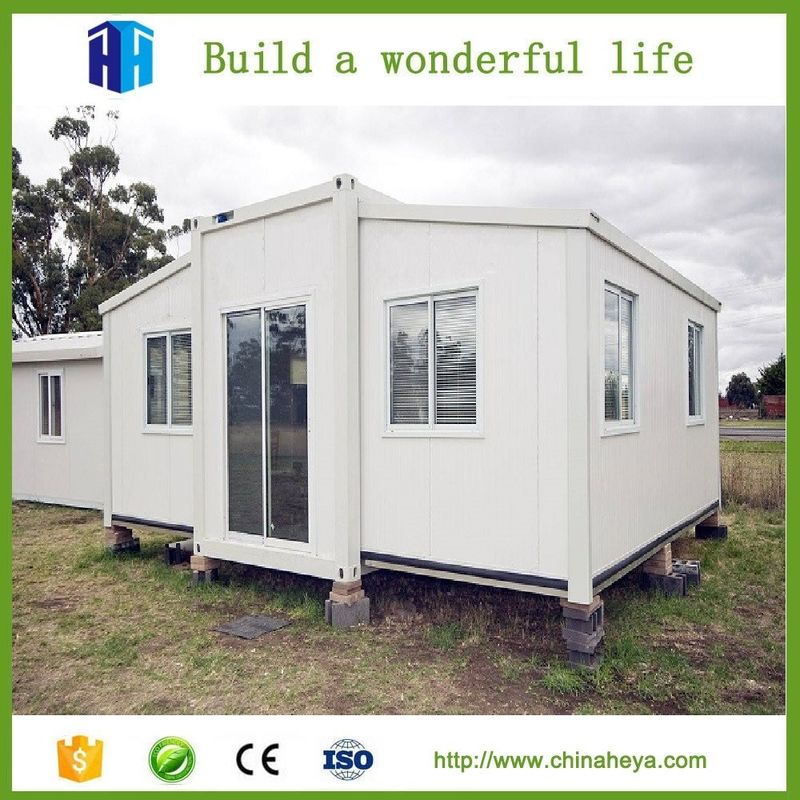

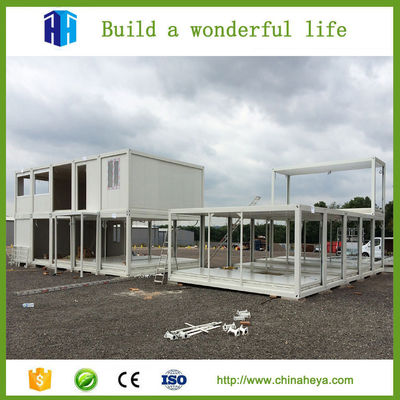

PRODUCT PHOTOS

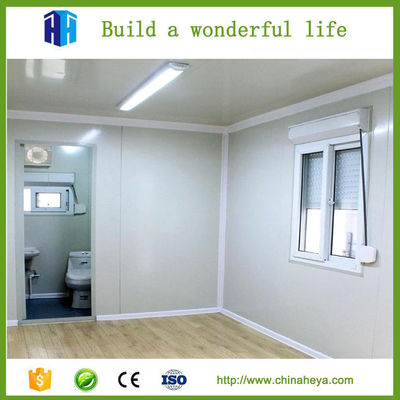

INTERIOR VIEW:
1)One 40ft HQ container can load 7units empty standard 20ft container house
1)4 in 1(SOC),4 units 20ft standard container house will be assemble into one 20ft container size
A. Professional design and engineering team: Full solution for steel structure design.
B. Procurement and Manufacture for all material for prefabricated building. We have a professional procurement team to make sure all the materials are with good quality. And our factory operation under ISO/CE/SGS standard, to make sure the fabrication works with high technology.
C.Site management & Installation supervision, We could send our engineers to help for the installation supervision, you just need to prepare a team which know normal construction works will be O.K.
SEND INQUIRY-CLICK HERE
|
FAQ:
1, What's your Payment term? 50% deposit by TT, 50% balance before loading container by TT; 100% LC at sight(total payment over 100,000USD);
2, How about Shipping? We use 40HQ container to ship the goods; Usually 40HQ container can load about 160-180 square meters house.
3, Delivery time? Depend on MOQ,usually we can arrange shipment around 10days after received deposit
4, How to install? Usually we will provide installation drawing,and if necessary,we also provide installation video.
5, Can you send workers to help me build house? Considering the labor cost, safety and visa issues, we suggest to send one or two engineers to guide and train your staffs. You must provide air tickets, hotel, and meal, and 100USD per day for engineer salary.
|
Shandong Heya Company is the best Chinese prefabricated housing solution supplier.
Our products include prefabricated house,container house, mobile homes, villas, light steel structure. We have more 6 years experience in the industry, professional manufacture and procurement team, maintain long-term cooperative relationship with many well-known manufacturers.Already finish Germany Refugee container house project,Zimbabwe Prefabricated Classroom Project,South Africa Prefab House,Uruguay Prefab Villages House project,and so on.
Our company is committed to become your trusted partner, you focus on your area of expertise, let us help you deal with the temporary office and warehouse of a comprehensive solution.
OUR FACTORY
OUR CLIENTS
